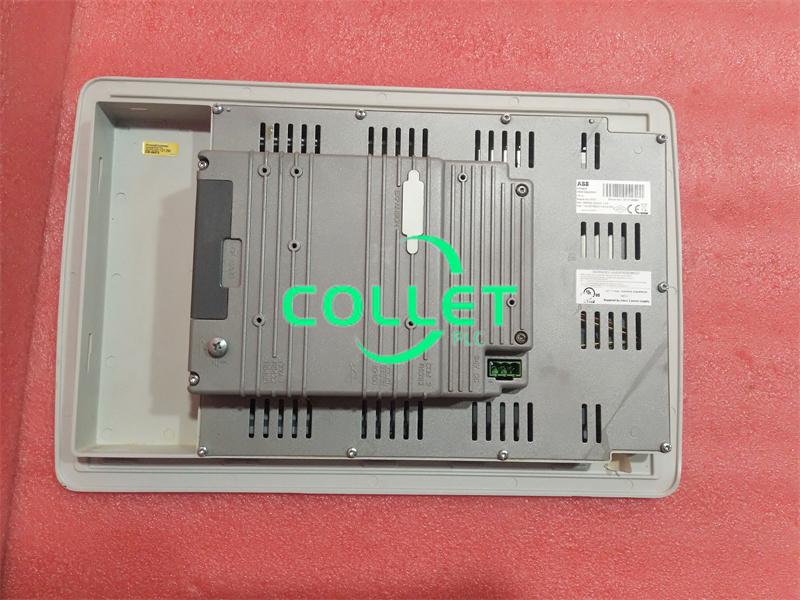

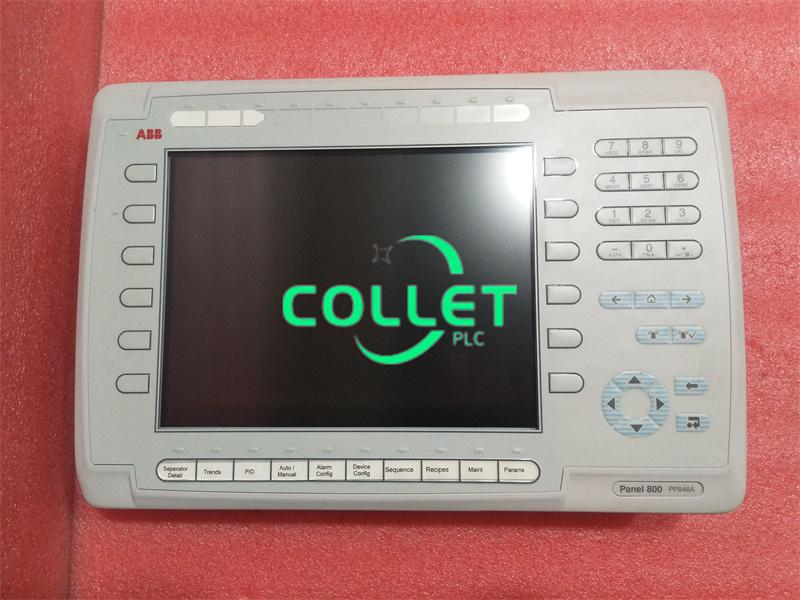

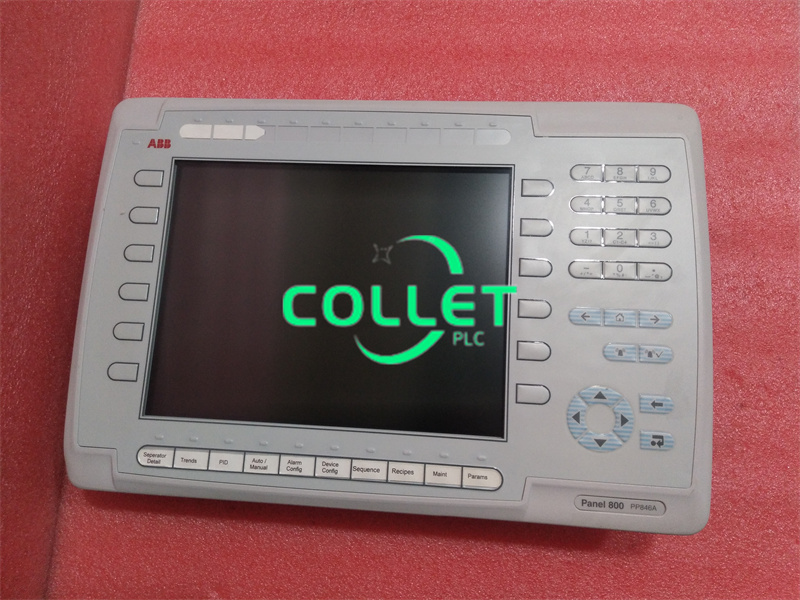

PP846A ABB 3BSE042238R2, Operator Panel

Description:

ABB PP846A 3BSE042238R2 is an operator panel manufactured by ABB.

Mounting depth: 58 mm (158 mm including clearance)
Front panel seal: IP 66
Rear panel seal: IP 20
Keyboard material: Membrane switch keyboard with metal domes. Overlay film of Autotex F157 * with print on reverse side. 1 million operations
Reverse side material: Powder-coated aluminum
Serial port RS422/RS485: 25-pin D-sub contact, chassis-mounted female with standard locking screws 4-40 UNC.
Serial port RS232C: 9-pin D-sub contact, male with standard locking screws 4-40 UNC.
Ethernet: Shielded RJ 45
USB: Host type A (USB 1.1), max output current 500mA; Device type B (USB 1.1)
CF-slot: Compact flash, type I and II
Flash memory for application: 12 MB (incl. fonts)
Real time clock: ±20 PPM + error because of ambient temperature and supply voltage. Total maximum error: 1 min/month at 25 °C Temperature coefficient: -0.034±0.006 ppm/°C2

Power consumption at rated voltage: Normal: 0.5 A; Maximum: 1.0 A
Display: TFT-LCD. 800 x 600 pixels, 64K color. CCFL backlight lifetime at the ambient temperature of
+25 °C: >50,000 h.
Active area of display, W x H: 211.2 x 158.4 mm
Fuse: Internal DC fuse, 3.15 AT, 5 x 20 mm
Power supply: +24V DC (20 - 30V DC). 3-pin jack connection block.
CE: The power supply must conform with the requirements according to IEC 60950 and IEC 61558-2-4.
UL and cUL: The power supply must conform with the requirements for class II power supplies.
Ambient temperature: Vertical installation: 0 ° to +50 °C; Horizontal installation: 0 ° to +40 °C
Storage temperature: -20 °C to +70 °C
Relative humidity: 5 - 85 % non-condensed
CE approvals: Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity.
