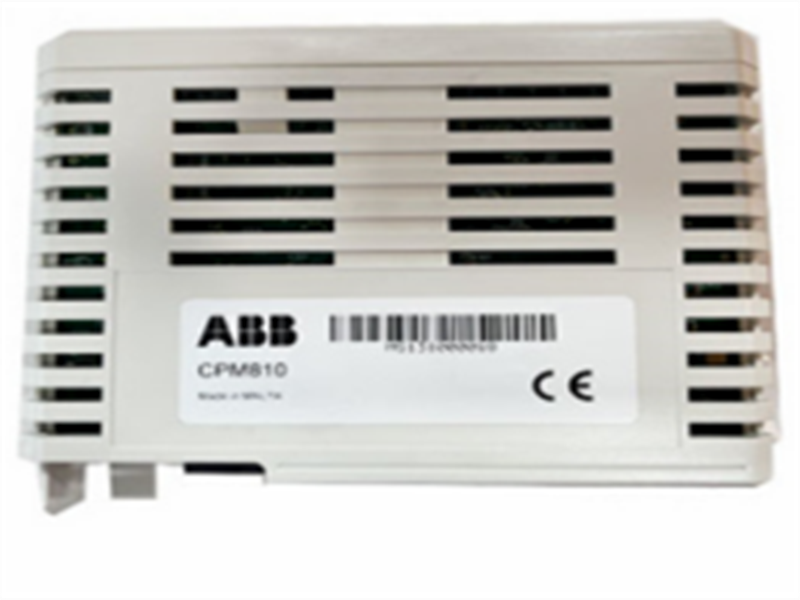

ماژول پردازنده مشترک ABB مدل CPM810

ABB CPM810 Common Processor Module is a high-performance control module that can be used as theSystem 800xA and Bailey INF1 90 control systems'central processor by ABB. As one of the corecomponents of industrial automation,the CPM810 offers high processing power, reliability, and flexibilityfor easy integration and precise control in industrial automation systems in different industries. Themodule provides smooth operation with fast data processing, system diagnostics, and centralized controlcapabilities.

The ABB CPM810 is a Common Processor Module used in turbine control systems and advanced industrialautomation platforms. Part of the ABB 800 series, it functions as a central processing unit withindistributed control architectures, supporting high-per formance signal processing and control logicexecution.

Parameters:

Model:CPM810
Processor Type: Common Processor Module
Supported Systems: System 800xA, Bailey INFl 90
Processor Speed:1 GHz
Memory: 2GB RAM(expandable)
Storage: 4 GB flash memory
Power Supply:

• Voltage:24 VDC
• Current Consumption: 0.5 A (typical)

• Range:-20Cto+60C(-4F to+140F)
• Storage Temperature:-40Cto+85C(-40F to+185F)

• Ethernet(1x 10/100/1000 Mbps)
• Modbus RTU
• PROFIBUS(optional)
• RS-232/RS-485

Installation Notes:
Must be installed in accordance with ABB system architecture and mounting guidelines' Requires proper grounding and shielding to ensure EMC compliance.Electrical and communication inter faces must be verified for compatibility with associated modules.Module should be housed in a temperature-controlled and vibration-protected enclosure

Datasheet Link:

CPM810 ABB Common Processor Module PDF Datasheet
