ABB |
|
Model
|
560CMU05
|
| PN No. |
1KGT012700R0002
|
|
Catalog
|
Harmony API |
|
Description
|
Control Board
|
| Origin | Sweden |
| HS CODE |
85389099
|
| Dimension |
14*20*5(CM) |
| Weight | 0.2kg |
Description:

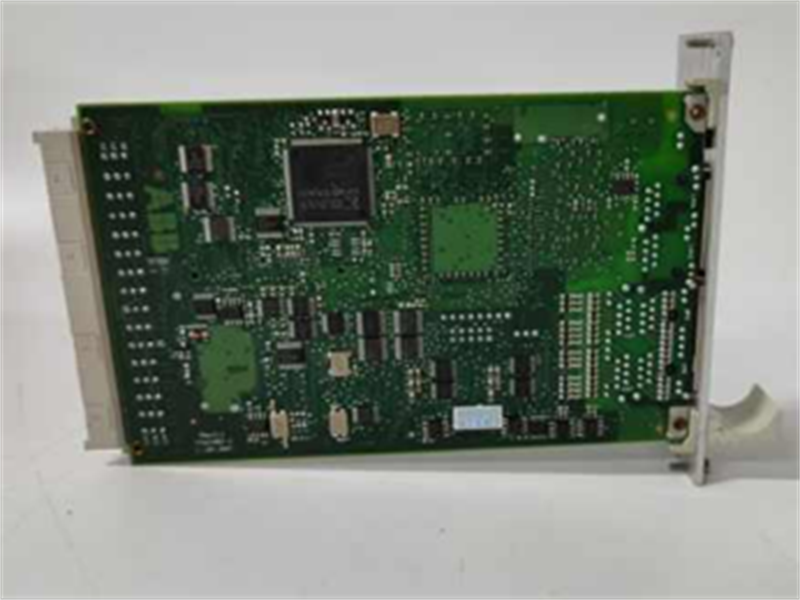

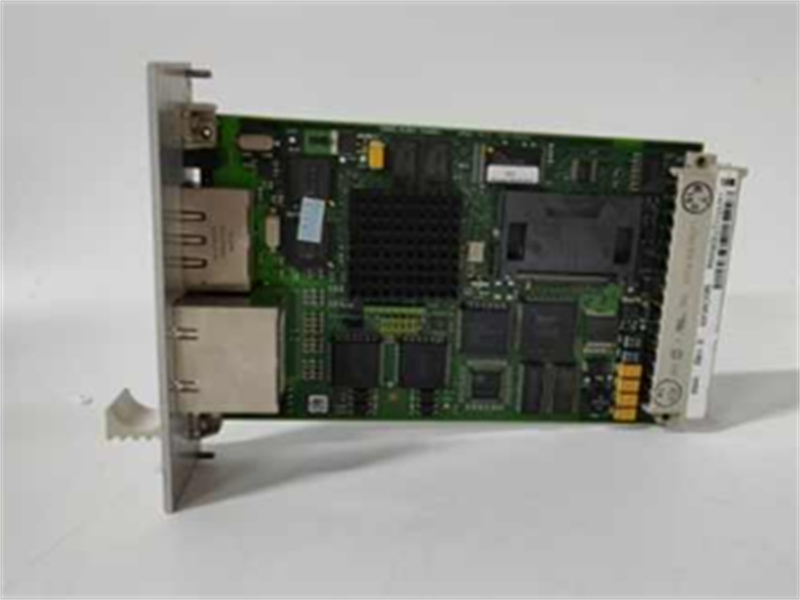

The ABB 560CMU05 is the central communication module of the RTU560 series of remote terminal units. As the core processor and communication hub, it ensures seamless data exchange with SCADA systems, HMLs, sub-RTUs, intelligent electronic devices (IEDs), and instruments. Furthermore, it supports reliable monitoring of I/O modules connected in industrial and utility networks.
The 560CMU05 features a modular architecture design, integrating powerful processing capabilities and multi-protocol support to deliver high performance in harsh automation environments. Therefore, it provides safe and continuous operation even under harsh conditions.
This unit integrates protocol processing, event processing, and command execution into a compact and robust form factor, simplifying communication management. It also reduces system complexity while improving the operational efficiency of distributed control systems.
It utilizes a 32-bit microprocessor, offering high reliability and scalability, making it suitable for harsh industrial environments such as high temperature, high humidity, and electromagnetic interference.
FEATURES
- Manages and controls multiple I/O modules efficiently
- Provides high-speed communication with SCADA, HMls, sub-RTUs, and IEDso
- Supports serial (RS-232/RS-485)and Ethernet(10/100BaseT)interfaceso
- Processes events and commands with a 32-bit CPU for high reliabilityo
- Modular design fits two slots in the RTU560 rack, reducing maintenance complexityo
- Operates under a wide temperature range for industrial reliability
Parameters:
Product Name: 560CMU05
Processor:32-bit CPU
Memory: RAM128MB, Flash/Storage2 MB
Serial Ports:4 x RS-232/ RS-485
Ethernet Ports:2x RJ45(10/100BaseT)
Input Voltage:24 V DC 10%
Data Transfer Rate: Ethernet up to 100 Mbps, Serial up to38.4 kbps
Form Factor: Modular, occupies two RTU560 rack slots
Operating Temperature: -25C to+70C
Storage Temperature: -40C to +85C
Frequently Asked Questions:
Q1: Can the 560CMU05 support multiple SCADA protocols simultaneously?
A: Yes, it can manage multiple protocols concurrently, ensuring seamless data exchange.
Q2: What is the maximum number of I/0 modules supported?
A: The module can efficiently manage all compatible RTU560 I/0 modules without performance degradation.
Q3: Is the module suitable for harsh industrial environments?
A: Yes,it operates reliably from -25C to +70C and withstands typical industrial conditions.
Q4: How is the module powered?
A: It operates with a24 V DC input, 10%, providing stable operation for all connected modules.
Datasheet Link:
560CMU05 ABB 1KGT012700R0002 Central Communication Unit Module
PDF
Datasheet
