ABB |
|
Model
|
23AE23
|
| PN No. |
23AE23
|
|
Catalog
|
Harmony API |
|
Description
|
Analog Input Module
|
| Origin | Sweden |
| HS CODE |
85389099
|
| Dimension |
14*20*5(CM) |
| Weight | 0.2kg |
Description:

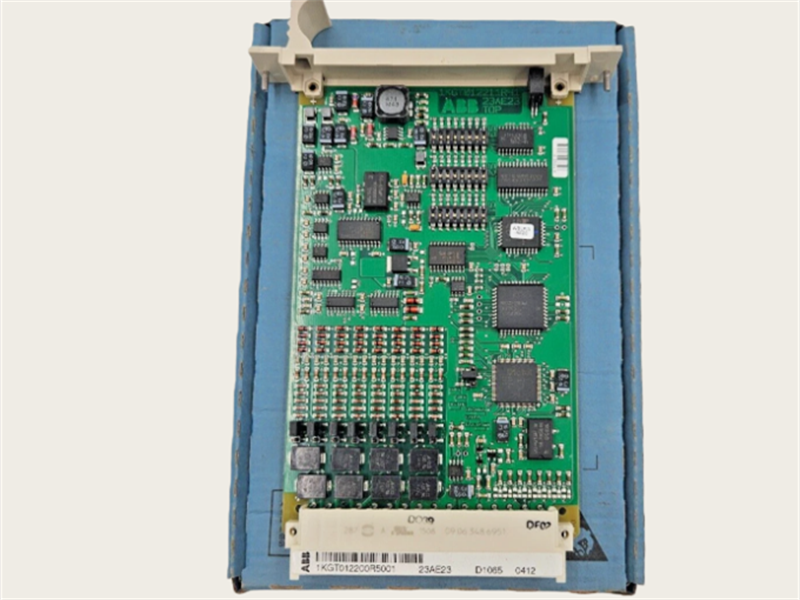

The ABB 23AE23 Analog Input Module is designed for precise data acquisition in industrial automationsystems, offering high-resolution AD conversion and robust communication capabilities with the RTU560system bus.
FEATURES
- High-resolution AD converter (24-bit)
- Couples digital protection relays with fiber optic interfaces according to EC60870-5-103 standard
- Point-to-point connection
- Multi-point connection
- In bus links
- Optical amplifiers for extending fiber optic links
- Connection to any other device with a fiber optic interface
Application Area:
-
Transmission network substations
- Automation of transmission substation
- Digital substation
- Migration
- Electrical distribution network, primary substation
- Automation of primary substation
- Transformer automation and control
Specifications:
Model Number:
23AE23
Input Channels:
8 differential inputs
Measuring Ranges:
2 mA,5 mA,10 mA,20 mA, 40 mA, 2 V DC/0.. 20 VDC
Shunt /Impedance:
Continuous Load :
AD Converter Resolution :
24bit
Common Mode Voltage
Datasheet Link:
23AE23 ABB 1KGT012200R5001 Analog Input Module
