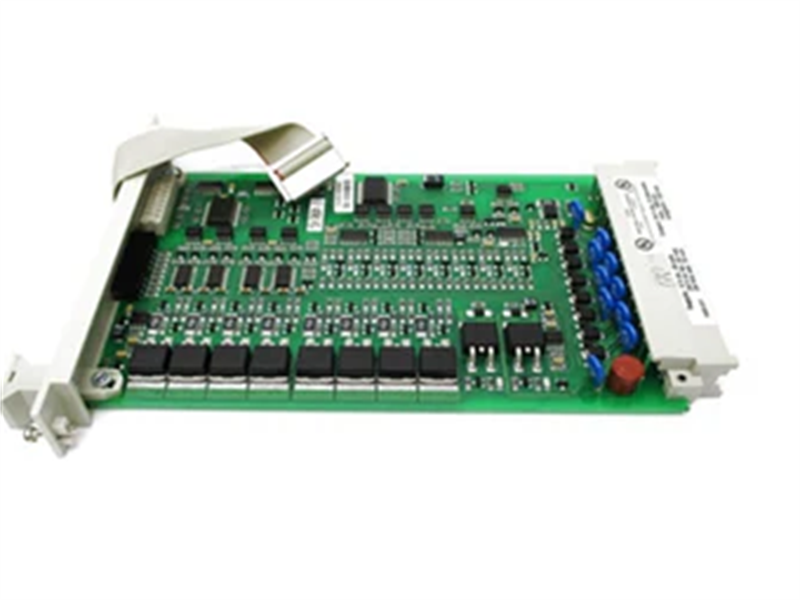

ماژول انتخاب کلید روشن/خاموش هانیول مدل 10002/1/2

Description:

The Honeywell 10002/112is a central processor unit (CPU) module used in Factory Safety Control(FSO) systems.It is a rail-mounted module that is designed to provide a reliable and stablepower supply to electrical systems.

It executes core logicand system diagnostics, with manual run/stop control via a front-panel key switch.It is commonly used in industrial controlsystems, building automation systems, and renewable energy systems.It offers a straightforward and intuitive means to control machineryand equipment, catering to a wide spectrum of users.

Specifications:

Product No. : 10002/1/2
Input voltage range: 85 to 264 Vac
Output voltage: 24 Vdc
Output current:2 A
Efficiency:85%
Ripple and noise: <100mVpp
Overload and short circuit protection: Yes

Operating Temperature:-40°C to +70 °C
Enclosure Rating: IP65

Features:

• Core Processing

Executes safety logic and system operations

• Manual Control

Hardware key switch for operational mode selection

• Battery Retention

Maintains RAM data during power loss

• Wide input voltage range

The 10002/1/2 PSU can operate with a wide range of input voltages, from85 to264 Vac. This makes it suitable for a variety of applications,even in areas with unstable powergrids.

• High efficiency

The 10002/1/2 PSU has a high efficiency, meaning that it converts a largepercentage of the input power to output power. This helps to reduce energy costs and heatgeneration.

• Low ripple and noise

The 10002/1/2 PSU produces a low ripple and noise output. This is importantfor applications where sensitive electronic equipment is being used.

• Run/Stop Control

Prominent pushbutton switch facilitates quick and easy starting or stopping ofassociated machinery or equipment.

• Easy Installation

Simple installation process; compatible with most control systems using standard wiring.

Frequently Asked Questions:

Q1: What is this module used for?

A1:This is a "Run/Stop Key Selector," installed on the Operator Keyboard or Universal Station. Its core function is to control the start and stop permissions of critical automation processes.

Q2: What are the most common faults of this module? How to troubleshoot them?

A1: Key Switch Mechanical Failure: After prolonged use, oxidation, wear, or spring failure of the internal contacts of the switch can lead to poor contact and intermittent signal transmission. This is the most common fault.

LED Indicator Damage: The LED bulb is burnt out.

Internal Circuit Failure: The power supply regulator or signal driver chip is damaged.

Connection Problems: The multi-core flat cable at the rear (connecting to the keyboard motherboard) is loose, or the pins are bent or corroded.

Datasheet Link:

10002/1/2 Honeywell Run/Stop Key Selector Module PDF Datasheet
